Aorus Z790 Elite X WiFi 7 Motherboard Review
Author: Dennis Garcia
Benchmarks - Synthetic
Sandra is a software collection of synthetic benchmarks that will give us a basic idea as to what a system is capable of. It should be noted that SiSoft numbers change depending on what hardware is being tested. These were recorded using Sandra Professional Version 31.115.2021.12

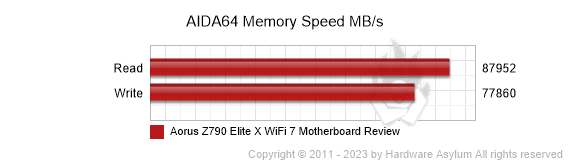

AIDA64 Extreme Edition is a streamlined diagnostic and benchmarking software package designed to assist with overclocking and general system tuning. The package also contains modules to assess the performance of the processor, system memory, and disk drives in addition to normal stuff like stress testing and troubleshooting.
One of the most difficult things about doing reviews is finding some kind of common ground to establish a benchmark on so that when we say something is good our readers know it is based on something they can try themselves. In the case of audio reproduction there are too many factors to consider such as hearing quality, sound equipment (speakers) and room dimensions so we are turning to the RightMark Audio Analyzer to give us a set of audio specs. We will then use those numbers to determine what kind of audio quality you can expect.
This test was performed using a loopback cable which is basically a jack that connects the analog line-out plug back into the analog line-in. That way we can remove almost all of the variables and concentrate on what is actually being reproduced and recorded.
Specs
Frequency response (from 40 Hz to 15 kHz), dB: +0.00, -0.01
Noise level, dB (A): -97.0
Dynamic range, dB (A): 97.4
THD, %: 0.00148
THD + Noise, dB (A): -89.1
IMD + Noise, %: 0.00460
Stereo crosstalk, dB: -82.3
IMD at 10 kHz, %: 0.00419
General performance Very Good
Color coding indicates good to bad, Bright green = Excellent - Bright Red = Poor - Black = Good
Synthetic performance never really tells the entire story, but is a good indication of what the system would probably be capable of doing under the right conditions. For this set of benchmarks I wanted to show how Raptor Lake matched against a number of other high-end motherboards from a previous generation. As expected, there is very little difference between the Core i9 13900K and Core i9 14900K
The Rightmark audio benchmark is a great tool for exposing audio specs for the various chips and software used and read much like if you were buying an amplifier or sound system for your house. What I have discovered is that motherboard makers are getting better at installing their audio solutions to the point where the audio testing is finally matching what the chips are capable of.
