Gigabyte Z87X UD4H Motherboard Review
Author: Dennis Garcia
Published: Wednesday, July 03, 2013
Benchmark Configuration
The system as it was tested
Gigabyte GA-Z87X-UD4H - Z87 Chipset
Intel Core i7 477K (3.5Ghz) Quad Core 4 x 256KB L2 Cache 8MB L3 Cache
Thermaltake Water 2.0 Performer
1x nVidia GTX 770
2x GSKill RipjawsX PC2133 4GB DDR3 (9-10-9-28)
Micron C300 128GB SSD
HP dvd1260i Multiformat 24x Writer
Thermaltake Toughpower Grand 1050 Watt PSU
Windows 7 Ultimate 64bit SP1
Intel Core i7 477K (3.5Ghz) Quad Core 4 x 256KB L2 Cache 8MB L3 Cache
Thermaltake Water 2.0 Performer
1x nVidia GTX 770
2x GSKill RipjawsX PC2133 4GB DDR3 (9-10-9-28)
Micron C300 128GB SSD
HP dvd1260i Multiformat 24x Writer
Thermaltake Toughpower Grand 1050 Watt PSU
Windows 7 Ultimate 64bit SP1
Reference System
Gigabyte Z87X-UP7 OC - Z77 Chipset
Intel Core i7 3770K (3.5Ghz) Quad Core 4 x 256KB L2 Cache 8MB L3 Cache
Thermaltake Water 2.0 Performer
1x nVidia GTX 770
2x GSKill RipjawsX PC2133 4GB DDR3 (9-10-9-28)
Micron C300 128GB SSD
HP dvd1260i Multiformat 24x Writer
Thermaltake Toughpower Grand 1050 Watt PSU
Windows 7 Ultimate 64bit SP1
Intel Core i7 3770K (3.5Ghz) Quad Core 4 x 256KB L2 Cache 8MB L3 Cache
Thermaltake Water 2.0 Performer
1x nVidia GTX 770
2x GSKill RipjawsX PC2133 4GB DDR3 (9-10-9-28)
Micron C300 128GB SSD
HP dvd1260i Multiformat 24x Writer
Thermaltake Toughpower Grand 1050 Watt PSU
Windows 7 Ultimate 64bit SP1

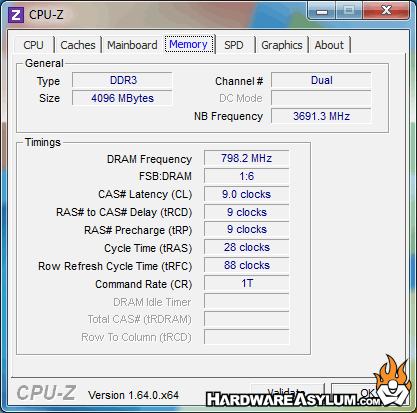

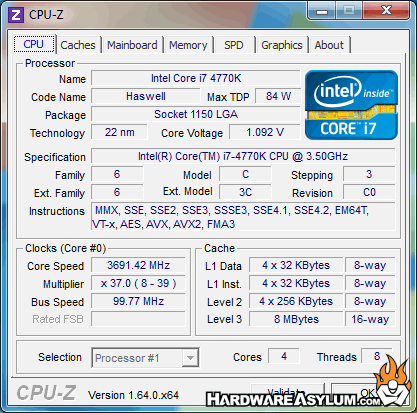

CPU-Z
Our motherboard testing suite has been compiled to subject the system to a variety of different scenarios that help uncover some of the subtle differences in motherboard design. Normally these differences are driven by the processor and BIOS programming but with the advent of an IMC and PCI Express moving to the CPU we have discovered that raw performance numbers are virtually identical across the systems.
Our new approach is to look at total system performance and minimize the variances. The results will tell us how the system responded as a total package and also give us something to use in our comparisons.
Our new approach is to look at total system performance and minimize the variances. The results will tell us how the system responded as a total package and also give us something to use in our comparisons.
